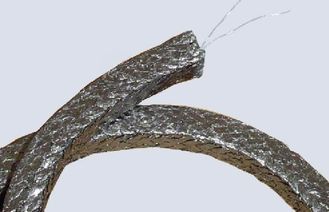

High Pressure Valve Packing ( Wire Reinforced Graphite Braided Gland Packing With Corrosion Inhibitor )
ITEM :- Sigma 171M
PRODUCT NAME :- High Pressure Valve Packing (Wire Reinforced Graphite Braided Gland Packing With Corrosion
Inhibitor)
BRAND :- SIGMA PLACE OF ORIGIN : INDIA
CERTIFICATION :- API, ISO 9001
APPLICATIONS / USES :- Wire Reinforced graphite packing(High Pressure Valve Packing), the packing made of
low-sulphur expanded graphite yarns with corrosion inhibitor, reinforced with Inconel / S.S. wire.
The exclusive packing is formable, yet tough. Rated in steam service maintains integrity in steam up to 650°C.
Application :
Designed for hot water, high temperature and pressure steam, heat transfer fluid, hydrogen gas, ammonia, solvents, hydrocarbons, cryogenic liquids etc,
except for fewer strong oxidizer.
Braided Gland Packing
With the experience of more than 40 years with always update to latest technology of interlock braiding heavy duty machinery & follow the latest art of manufacturing process.
We make any & all types of Braided Gland Packing made of PTFE, Polyamide, PTFE-Graphite, Carbon , Graphite, Glassfibre, Ceramic and other products for industrial temperature, pressure & chemical insulating, packing & sealing applications.
Gland Packings are also available in rings as per your required dimensions and we custom make sets as per your requirement to solve multiple industrial sealing purposes.
Service Limits, Application Parameter
Specifications |
|
|---|---|
Pressure Psi bar |
to 500 psi (34 bar) rotary / centrifugal ; to 2000 psi (138 bar) valves |
Shaft speed M/s |
to 1500 rpm |
Density g/cm3 |
1.5 |
Temperature °C |
-3280F (-2000C) to 12000F(6500C Steam) & (33000C Non-oxidizing media) |
PH range |
0-14 |
Size Dimensions
Size mm
| 4 |
5 |
6 |
8 |
10 |
12 |
14 |
15 |
16 |
18 |
19 |
20 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
approx. mtr. / kg |
35 |
22 |
16 |
9.0 |
5.6 |
3.9 |
2.9 |
2.5 |
2.2 |
1.7 |
1.5 |
1.4 |
Prime Features
- High thermal conductivity for cool running.
- Very good start-up and emergency running characteristics.
- Less gland adjustment, easy break-in, & even compression in all rings
- PREVENT Galvanic corrosion of the spindle/shaft
- Excellent low co-efficient of friction and minimal Shaft wear.
- Very Resilient and resistance to thermal shock & high thermal conductivity
- Significant serviceability of packing
- Non-abrasive; hence rules out shaft scoring
